Descripción

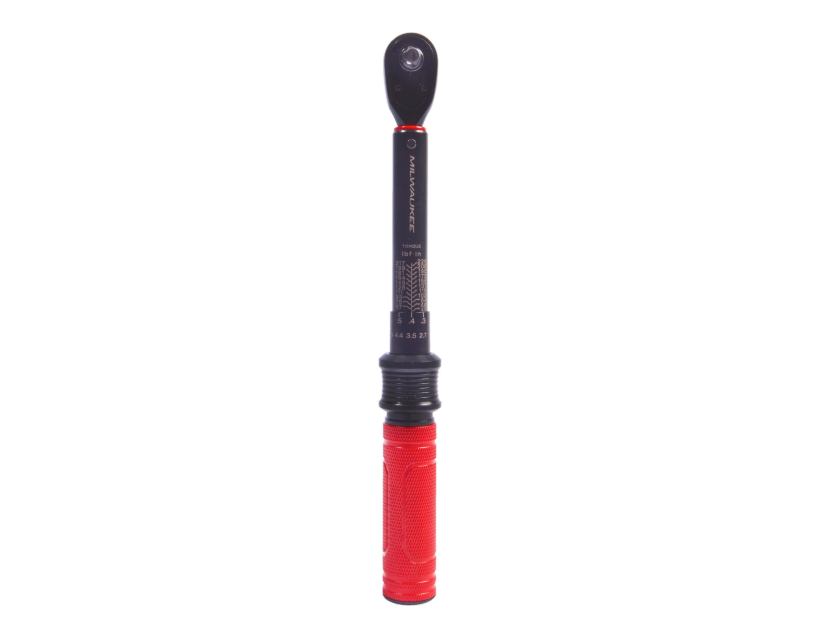

The Milwaukee 1/4” 5-25 Nm Manual Torque Ratchet Wrench is designed for precision applications requiring exact torque control. Thanks to its 90-tooth ratchet mechanism and a small 4° return angle, it allows comfortable work in tight spaces while maintaining high accuracy with each tightening.
FEATURES
- Adjustable torque range from 5 to 25 Nm.
- Accuracy of ±3 % clockwise and ±4 % counter-clockwise.
- 90-tooth ratchet for greater work efficiency.
- Return angle of only 4°, ideal for hard-to-reach areas.
- Warning system via audible and tactile click when the selected torque is reached.
- Easy-to-read engraved scale for quick and precise adjustments.
- Locking ring prevents accidental adjustment changes.
- Ergonomic knurled handle for a secure grip.
- No need to reset to zero after each use.
- Manufactured for demanding professional applications.
SPECIFICATIONS
| Square drive | 1/4" |
| Torque range | 5-25 Nm |
| Accuracy (clockwise) | ±3 % |
| Accuracy (counter-clockwise) | ±4 % |
| Number of teeth | 90 |
| Return angle | 4º |
| Overall length | 247 mm |
| Standard | ISO 1174-1 / DIN 3120 |
| Reference | 4932500823 |
