Descripción

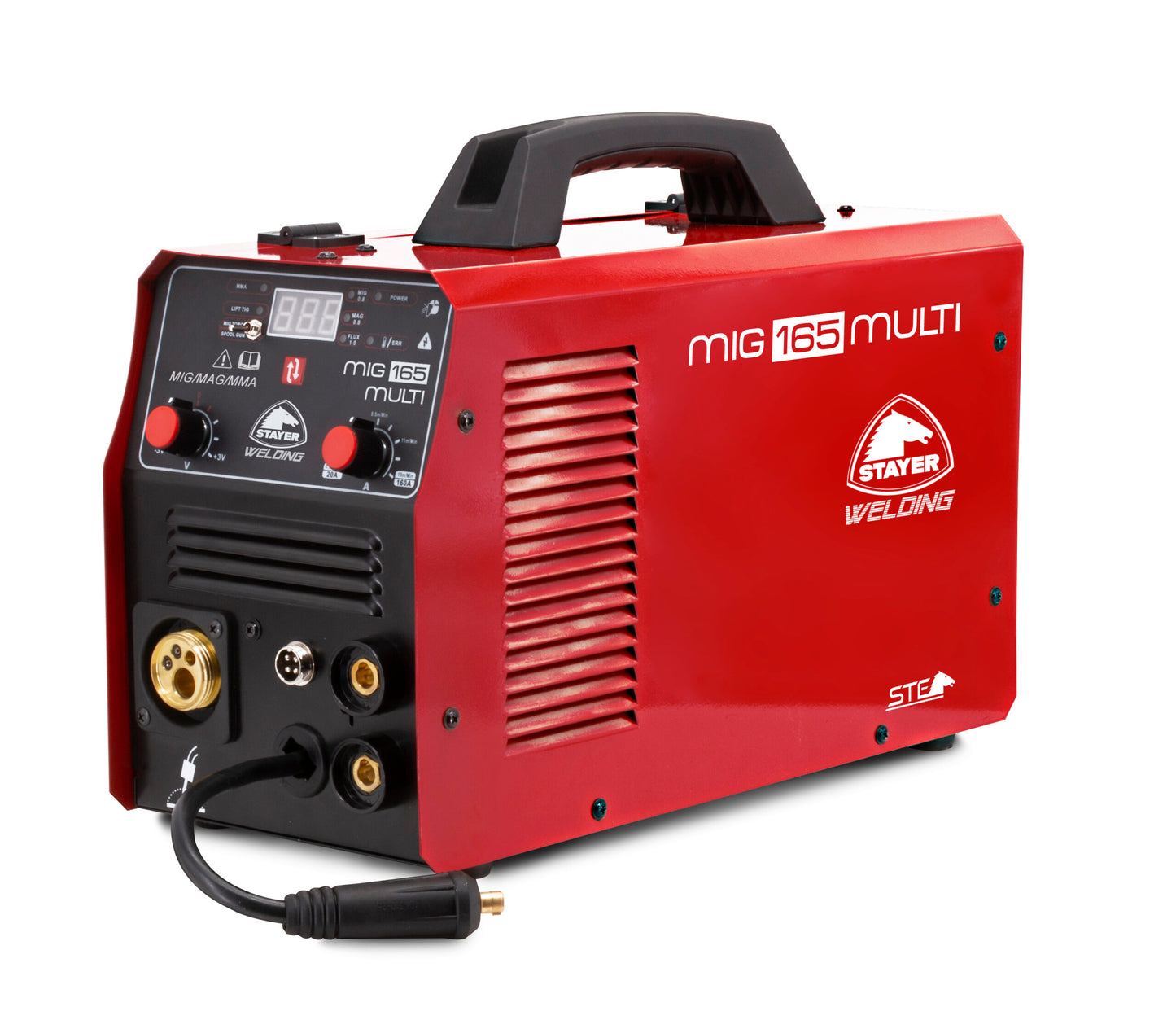

The MIG 165 MULTI inverter welder is a multifunction welding equipment prepared to weld with MIG, MAG, FLUX, TIG LIFT ARC wire or coated electrode with a duty cycle of 60%.
This equipment has a strong and robust design that complies with all European specifications 2011/65/EU, 2014/35/EU, 2014/30/EU and EN 60974. Therefore, it is able to withstand severe working conditions and environments.
Its amperage can range from 30 to 160 A and its no-load voltage varies depending on the type of welding. For MIG/MAG and MMA it is 65 Vdc and for TIG it is 18 Vdc.
Setting it up is also quick and easy. It has a very intuitive front panel that allows you to adjust the type of welding, and classic analog controls to adjust the current, voltage or wire speed.
It also has a capacity to carry spools of up to 5 kg, and includes a precision feed mechanism suitable for 0.6mm / 0.8mm / 0.9mm thread spools.
In the case of welding with TIG LIFT ARC, the maximum diameter of the tungsten electrode is 2.4 mm.
Finally, it should be added that the MIG 165 MULTI welding equipment allows its use with generators with a tolerance of +/-15% on 230V.
ADVANTAGES
- STAYER MIG MULTI range, with EUROTORCH torch connection and with 160-170 amp power.
- Designed for the highest quality MIG, TIG and MMA processes.
- Easy setup in MIG mode, possibility of using gas or hollow wire without gas.
- With gas, connect torch return to positive terminal (+).
- Hollow wire without gas, connect torch return to negative terminal (-).
- Efficient and simple wire welding adjustment with just two buttons: one for control including speed mode and another for voltage. A switch enables changing between wire (MIG) and electrode (MMA) and TIG working modes.
- Protection against over temperature and over currents.
- Very complete equipment including torches, pulley, ground cables and electrode holder.
- IGBT technology based on state-of-the-art microprocessor control capable of providing up to 170 amps (MIG 170).
- Transportable and robust: Compact, lightweight due to the use of fully inverter power circuitry. Oversized, high-quality components.
- MIG165 / 170 is for coils from 0.5 to 5Kg.
- Prepared for use with a stabilized generator, given its voltage input range of +/-17%.
SPECS
| Current | 160 A |
| Voltage | 130 V |
| Gear ratio | 60 % |
| Coated electrodes | 1.6 - 4.0 mm |
| Thread thickness | 0.6 - 0.8 - 0.9 mm |
| Coil weight | 0.5 - 1 - 5 kg |
| Use with generator | 5 - 7 KVA / 230V ±17% |
| Dimensions | 42 x 31 x 18 cm |
| Weight | 13 kg |
| Born DINSE | 3/8" (10-25) either |
| Power cable | 2m x 2.5mm ² |
| Cable + Ground clamp | 1.5m x 16mm ² |
| Cable + Electrode clamp | 2.5m - 16mm ² |
| MIG Torch | 15 AK |
| Contact tip included | 1.0 |
| Pulleys included | 0.8 - 1.0 |
| Cod. | 1.2688 |
INCLUDES
- Power cable / 2m x 2.5mm².
- Ground cable with clamp / 1.5mx 16mm².
- Electrode cable with clamp / Pure copper. 2.5mx 16mm².
- Internal winder from 0.5 to 5kg.
- Torch wire 15AK / 3m.
- Heco thread spool 5kg 0.9mm
